Howo 20 Ton Construction Gravel Tri Axle 10 Wheel Heavy Duty Dump Truck

Product Categories

QINGTE GROUP SPECIAL VEHICLES CO., LTD

Contact Now

Name: Howo 20 Ton Construction Gravel Tri Axle 10 Wheel Heavy Duty Dump Truck
Brand: SINOTRUK HOWO
Price: 18000 USD

Brand Name : SINOTRUK HOWO

Model Number : ZZ3257N3647A

Certification : CCC,ISO

Place of Origin : CHINA

MOQ : 1unit

Price : USD18000-38000/unit

Payment Terms : 30%TT as deposit, the balance should be paid before delivery; 100% irrevocable confirmed L/C at sight

Supply Ability : 3000units/month

Delivery Time : 30-45 days

Packaging Details : Nude packing after painted wax

Loading capcity : 20-25tons

Drive wheel : 6x4

Engine capacity : > 8L

Color : as you liked

Driver seat : air seat

Emission standard : Euro 2,Euro 3,Euro 4,Euro 5

Application : For construction work or mines work

Material : carbon steel

Contact Now

Howo 20 Ton Construction Gravel Tri Axle 10 Wheel Heavy Duty Dump Truck
1. The characteristic of SINOTRUK HOWO dump truck:
1)Because the loading and unloading truck can automatically dump a certain angle of unloading, greatly reducing the discharge time and labor, shortening the transportation cycle, improving production efficiency and reducing transportation costs, it is a common transportation and unloading.
2)The dump truck has four parts: the engine, the chassis, the cab and the upper body.
The structure of the engine, the chassis and the cab is the same as that of a general truck. The carriage is willing to roll backwards or sideways. There is a cab safety shield in the front section of the truck. The hydraulic tilting mechanism of the heavy duty tipper truck is composed of a hydraulic oil tank, a hydraulic pump, a distribution valve, and a lifting hydraulic cylinder, and the piston rod is pushed to tilt the cargo box. By controlling the piston rod movement, the dumper truck can be stopped at any position that needs to load or unload goods. The cabin is reset using its own gravity and hydraulic control.
2. Dump Truck Main Specifications:

Truck Model		ZZ3257N3647A, Left Hand Drive or Right Hand Drive model
Truck Brand		SINOTRUK -HOWO
Dimension(Lx W xH)		8545x2496x3386
Cargo body size (LWH, mm)		5800x2300x1400
Cargo body thickness(mm)		bottom:8mm, side:6mm, or customized as you required
Lift type of Carriage		Ventral lifting or front tipping
Approaching angle/Departure angle(°)		19/26
Overhang(front/rear) (mm)		1500/1739
Wheel base (mm)		3625+1350
Max speed(km/h)		75
Curb weight(kg)		12290
Loading Weight(kg)		25000
Fuel Tanker		300L with locking fuel cap
Fuel consumption(L/100km)		32
Clutch		Single-plate dry clutch Φ430mm
Engine	Model	WD615.47,4- stroke direct injection diesel engine, 6 cylinders in line with water cooling ,
	Horse Power,	371HP
	Emission Standard	EURO II
Transmission	Model	HW 19710,10 forwards and 2 reverse
Steering system	Model	ZF8098/ZF8118 hydraulic steering with power assistance
Front axle	HF9
Rear axle	HC16
Tire	12.00R20, 12.00-20

Tips to build your truck body
Transport medium	Floor(mm)	Side(mm)
Soil or Stone	8	4
Construction Waste	10	6
Big Ore	12	8
Coal	6	4
clay	8	4
Grain or Chemical fertilizer	6	4

Note: We not only have brand new customized truck, but also have many stocked trucks and used trucks, if you need, don't hesitate to contact us:manager@sinotruckexport.com

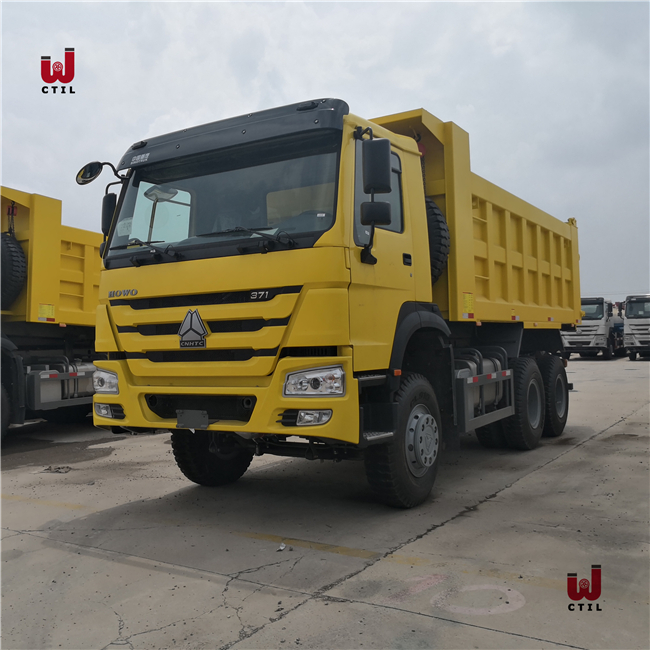

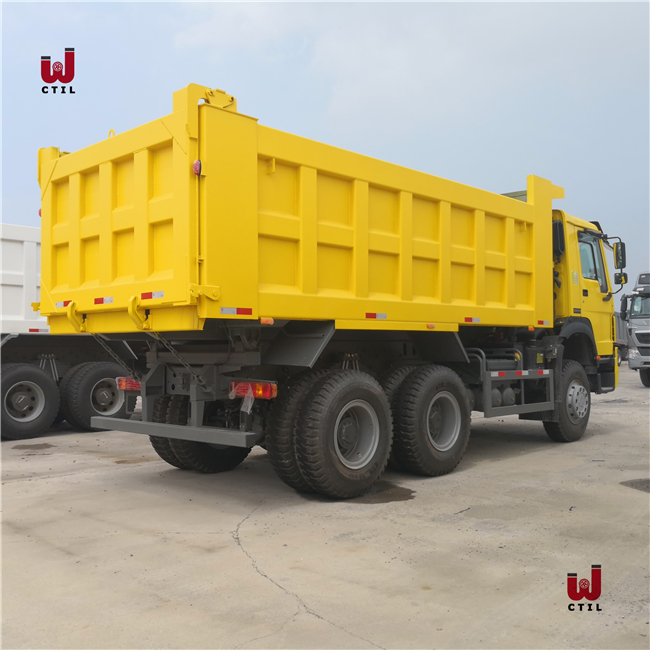

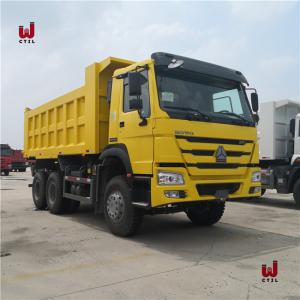

Howo 20 Ton Construction Gravel Tri Axle 10 Wheel Heavy Duty Dump Truck Images
