Brand New HOWO 8X4 12 Wheels 40 ton construction work big dump truck

QINGTE GROUP SPECIAL VEHICLES CO., LTD
Contact Now

Brand New HOWO 8X4 12 Wheels 40 ton construction work big dump truck

  • 1
  • 2
  • 3

Brand Name : Sinotruck HOWO

Model Number : ZZ3317N3867

Certification : CCC,ISO

Place of Origin : China

MOQ : 1unit

Price : USD41,000.00-USD43,000.00 per unit

Payment Terms : 30%TT as deposit, the balance should be paid before delivery; 100% irrevocable confirmed L/C at sight

Supply Ability : 3000units/month

Delivery Time : 30-45 days

Packaging Details : Nude packing after painted wax

Loading capacity : 40 tons

Drive wheel : 8x4

Fuel type : Diesel

Horsepower : 351 - 450hp

Engine : WD615.47

Cab : with Air conditioner

Condition : New

Gross vehicle weight : 31000

Transmission type : Manual

Capacity (load) : 31 - 40t

Contact Now

Brand New HOWO 8X4 12 Wheels 40 ton construction work big dump truck

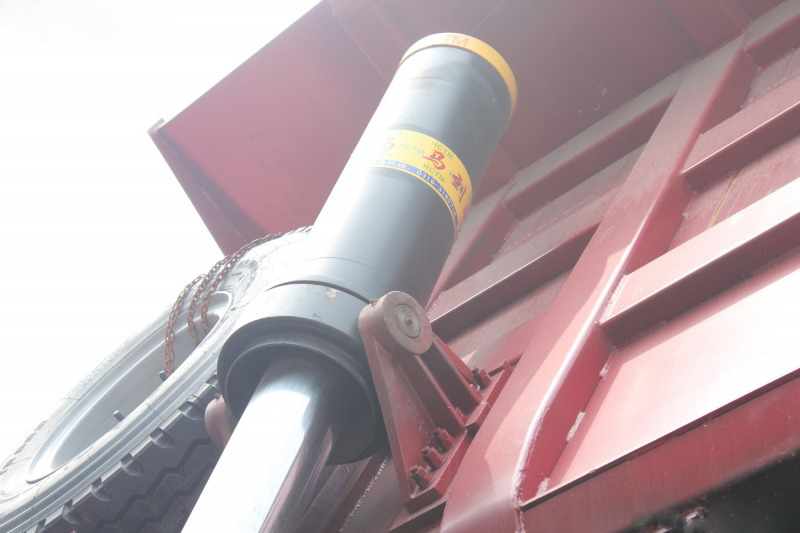

1. The dump trucks are divided into two types: tipping and lateral tilting. Through the control system, the piston rod is controlled, and the backward dumping is more common. The piston rod is pushed to tilt the carriage, and the bidirectional dumping is rare.As the loading compartment can automatically tip and discharge at a certain angle, the time and labor of the dumping can be greatly saved, the transportation cycle can be shortened, the production efficiency can be improved, and the transportation cost can be reduced. This is a commonly used transport vehicle

Brand New HOWO 8X4 12 Wheels 40 ton construction work big dump truck

2. MAIN DESCRIPTION

BRAND & MODE HOWO ZZ3317N3567W
Load Parameters
G. V. W. (kg) 31000
Curb weight, toal (kg) 15420
Loading capacity (kg) 30000
Drive form 8X4
Max. speed KM/h 75KM/h
Front axle capacity(KG) 6300/7000
Rear axle capacity (KG) 17700
Leaf spring 14/13/14/13/12
Appr/Dep.:(°) 19/26
Dimension Parameters
Dimension(mm) (L*W*H) 10745,10545,10680,10245×2496×3450,3800

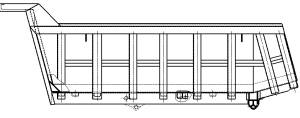

Cargo box Dimension(L*W*H) 7800,7600,7300×2300×1050
Wheel base(mm) 1800+3800+1350
Wheel trace(mm) 2041/2041, 1830/1830
Configuration Parameters
Cabin Cabin type Single
Seating capacity 2
Engine Brand&Model WD615.47
Max. horsepower 371HP
Max. power 273KW
Max.output torque 1350N·m
Displacment(ml) 9726
Combustion types Diesel
Gearbox Brand&Model HW19710
Fuel tank capacity 300L
Emission standard EURO 2

3. Why choose SINOTRUK?
SINOTRUK is the most famous truck brand in China. Founded in 1958 and charged by the government, SINOTRUK has developed very well these years and been exported all over the world.
1 SINOTRUK government factory
2 Superior carrying capacity
3 Heavy loading
4 High speed
5 Fuel economy
6 Comfortable and cab
7 Good performance with low price
8 One year warranty

Brand New HOWO 8X4 12 Wheels 40 ton construction work big dump truckBrand New HOWO 8X4 12 Wheels 40 ton construction work big dump truck

4. Product Experiments
Overall testing guarantees every vehicle is a competitive product Sinotruk owns professional road testing grounds for heavy trucks, so every new developed product will be tested by extremely strict professional experiments during development process

5.Packing&Shipping
Packing and transportation for SINOTRUK HOWO heavy dump truck tipper truck dumper truck by RO-RO ship and Bulk shipping

Brand New HOWO 8X4 12 Wheels 40 ton construction work big dump truck

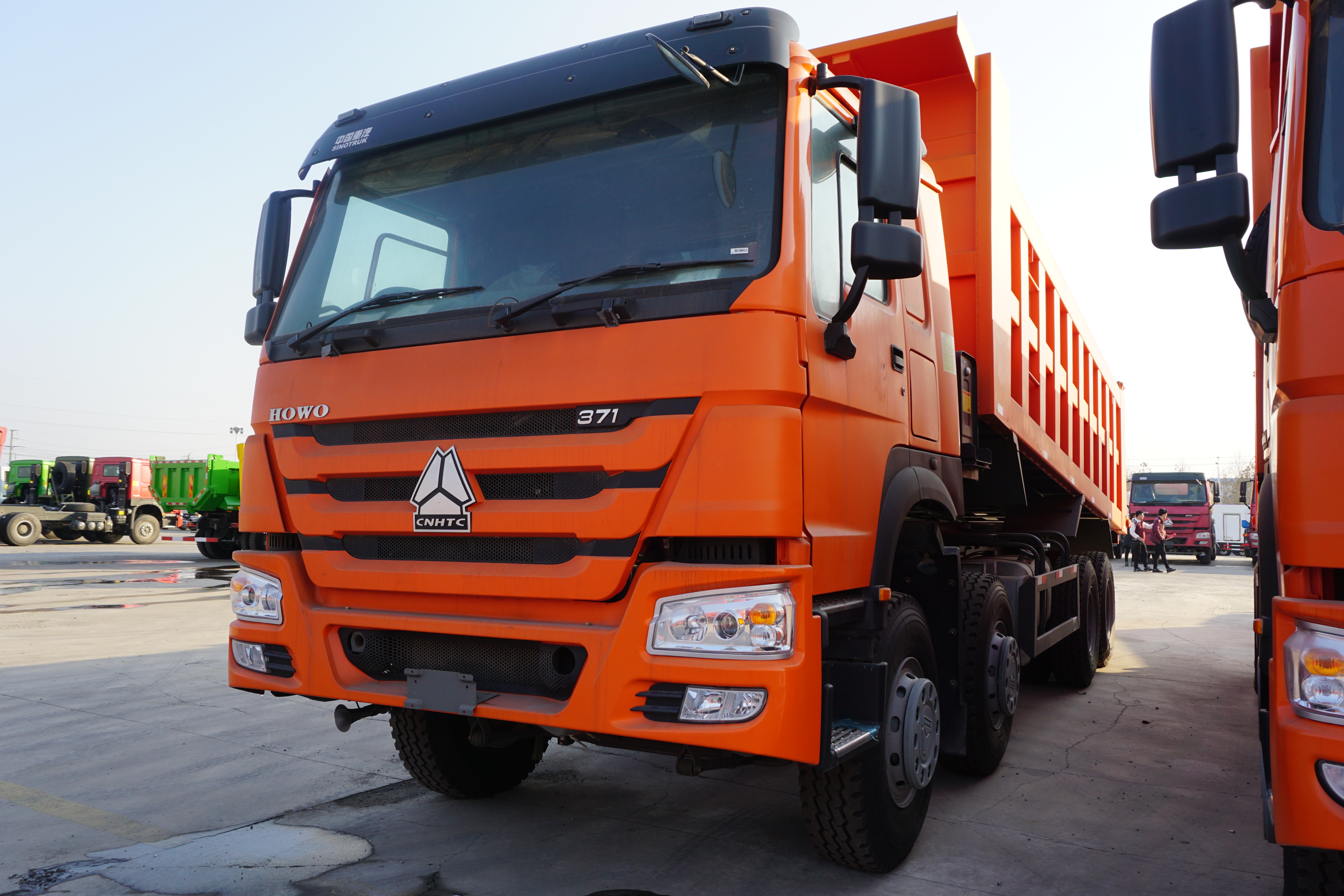

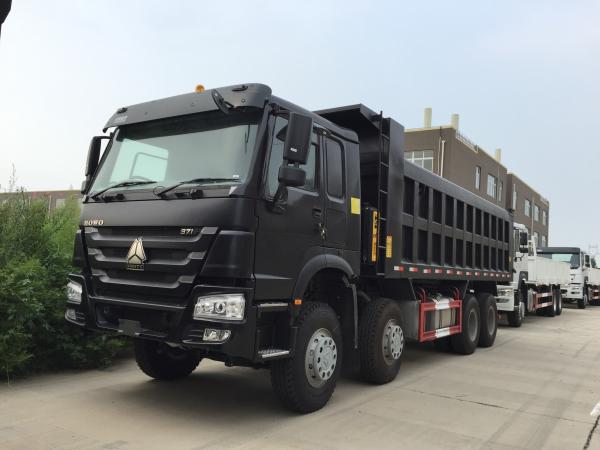

6. SINOTRUK HOWO Tipper Truck Photos

We are one of the leading and professional manufacturers in China with wide experience and expertise. Please rest assured to get our 8x4 30 ton sinotruk howo 20 cubic meters dump truck for sale. For more info, contact us now.

Brand New HOWO 8X4 12 Wheels 40 ton construction work big dump truck

Brand New HOWO 8X4 12 Wheels 40 ton construction work big dump truck
