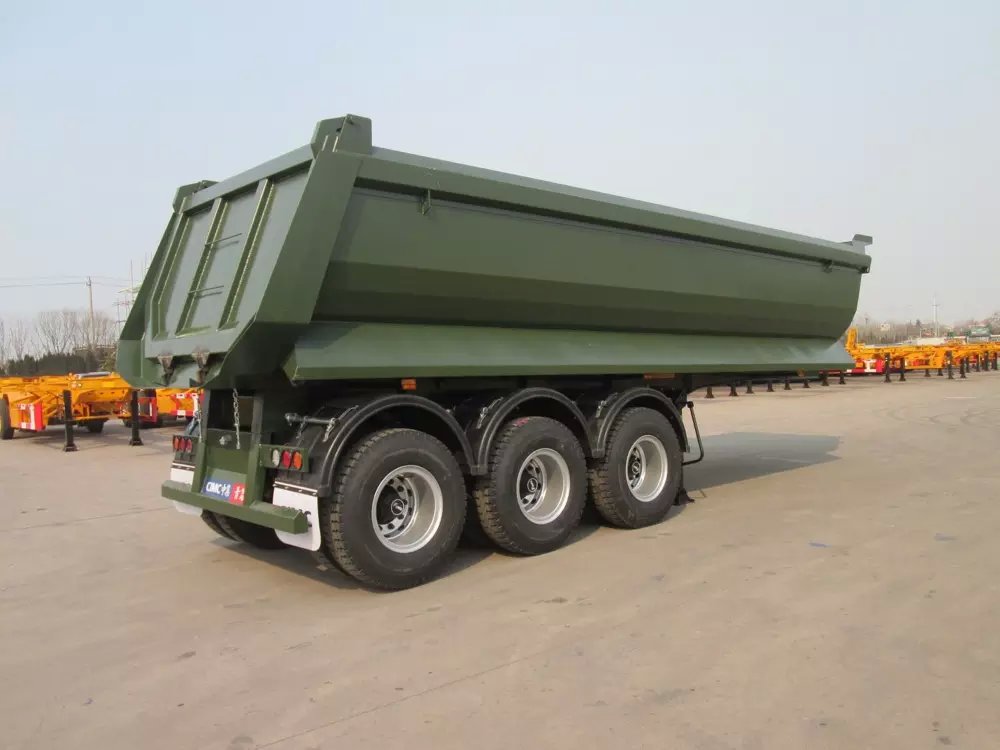

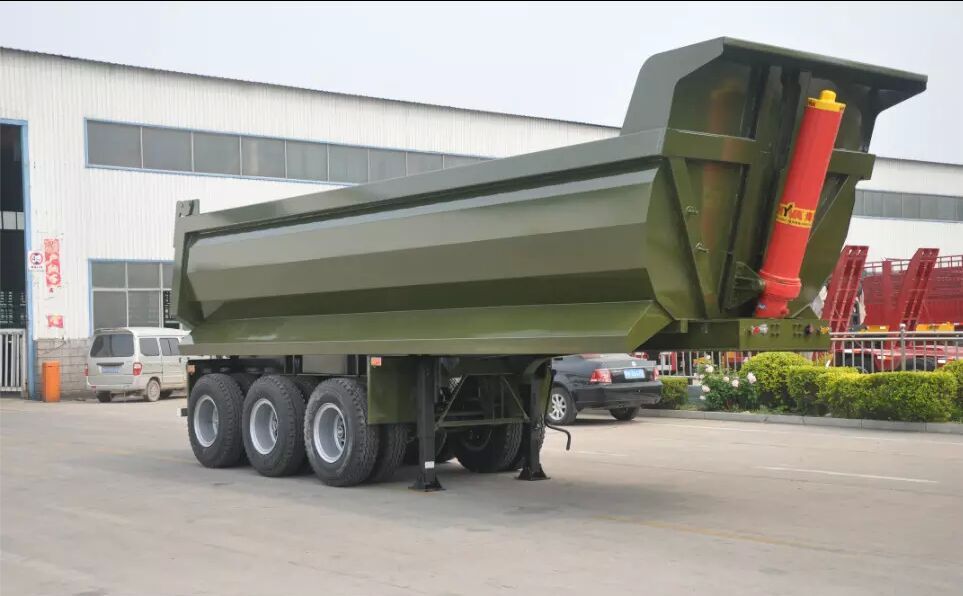

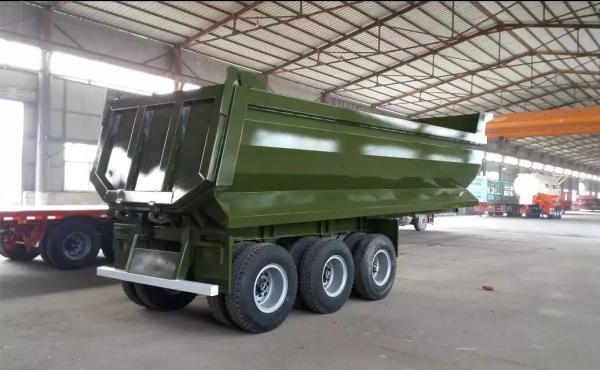

50 Tons Tri Axle Tipper Trailer U-Type Heavy Duty Hydraulic Dump Trailer
Dump trailer is mainly responsible for the transportation of loose cargo such as sand, gravel, soil and coal.
Usually, the carriage used with loaders generally adopts the method of back-tipping and self-unloading,
which can effectively improve the transportation efficiency of the loader for transporting bulk and loose cargo.
| 2. Hydraulic Dump Semi Trailers Configurations |
| Weight: | | |
| | Tare Weight | 8.5T-10T |
| | Payload | 30-45T(25m3--37m3) |
| | Axle Weight Load | 13T |
| Specification: | |
| | Axle number | Three |
| | Axle specs. | FUWA /BPW brand |
| | Suspension | mechanical suspensions |
| | King Pin | Jost 50#/90# traction pin |
| | Dimensions
(LxWxH) | 8800×2500×3500mm(Outside) |
| | Rim | 8.0 Zhengxing Brand 12 pieces |
| | Lifting system | Full set of Hyva hydraulic system |
| | Steel Spring | 10pieces |
| Tire: | | |
| | Tire specs. | 12.00R20 Triangle Brand |
| | Number of Tire | 12pieces |
| | Spare Tire Carriers | 2 pieces |
| Frame: (specs. and materials) | Main frame is height 500mm . |
| | Frame Beam | Upper and lower plate is 10mm,middle is ,
10mm(Double+three plate).height is 500 mm T700 |
| | Frame Floor | The Thickness is 4mm flat bed side wall 3mm |
| Brake: | | |
| | Brake | WABCO Brand |
| | Brake Chamber | Two double and two single chamber |
| | ABS | 4S/2M |
| 3. Other heavy duty truck trailers you may needed |

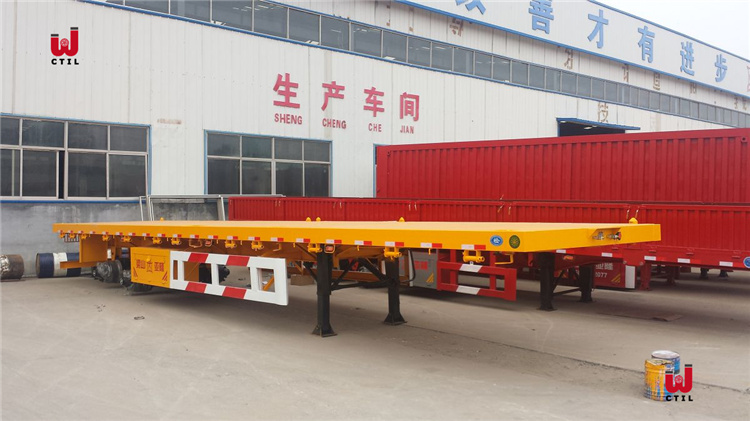

| Flatbed Trailer |  | Axle quantity: 3
Usage: for container or other bulk goods transportation
Loading capacity: 40 to 50tons
Tire: 295/80R22.5 |
| |
| Low Bed Trailer |  | Axle quantity: 3
Usage: for heavy machinery transporting
Loading capacity: 50 to 80tons
Tire: 12.00R20 |
| |

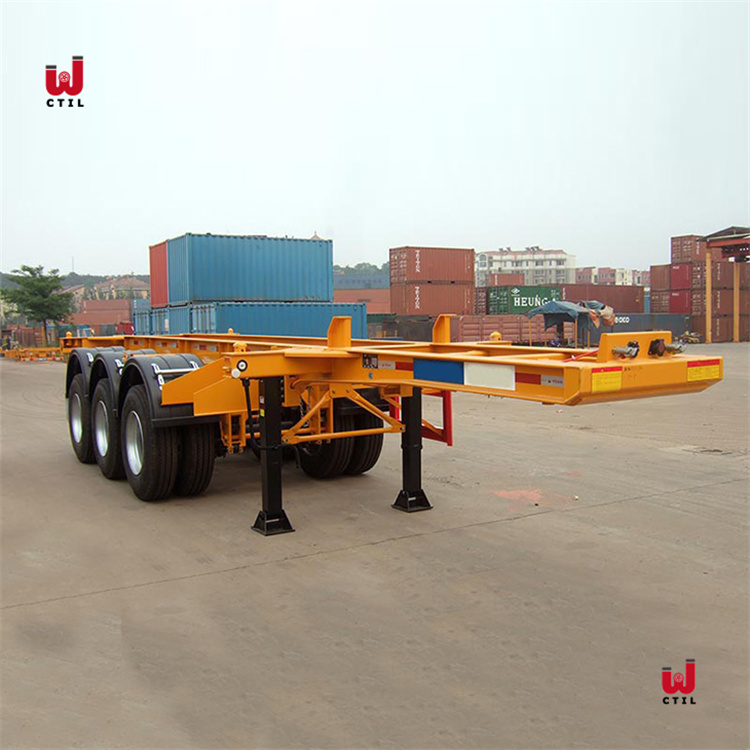

| Skeleton Trailer |  | Axle quantity: 3
Usage: for 20ft and 40ft containers transporting
Loading capacity: 50 tons
Tire: 12.00R20 |
| |

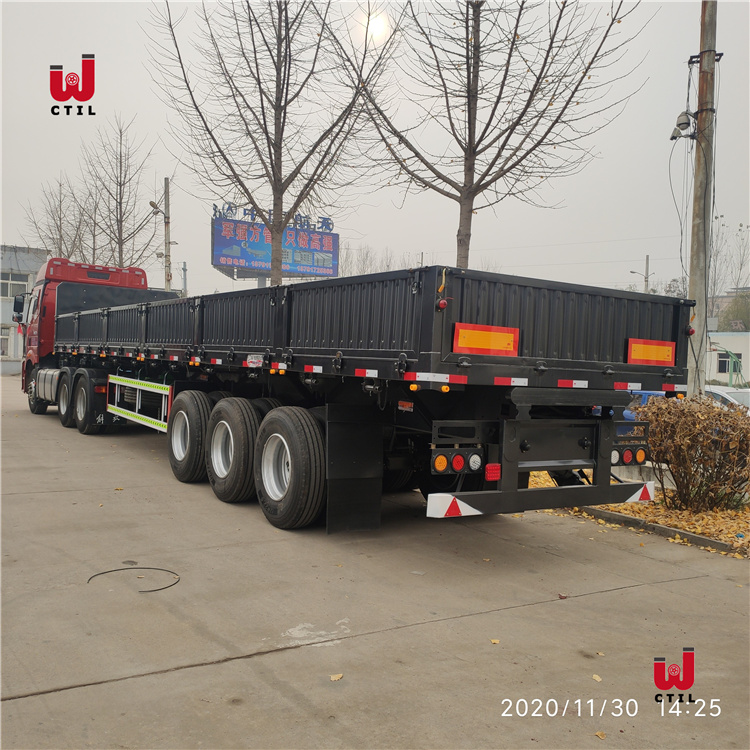

| Cargo Trailer |  | Axle quantity: 3
Usage: for bulk goods' transporting
Loading capacity: 70 tons
Tire: 12.00R20 |
4. Our China Trailers Factory
5. Truck trailer's Packing and Shipping
Packing: Nude packing after painting wax or according to your requirement.
Shipping: By bulk cargo carrier, RORO, Container
6. Warranty
(1) One year quality guarantee or within 100000km, which comes the first.
(2) Other spare part could be supplied by OEM at cost prices.
(3) Regularly callback to know the vehicle's working status.
(4) The overseas engineers are always ready to deal with unexpected needs.
Our engineers are maintaining the trucks for oversea customers.
