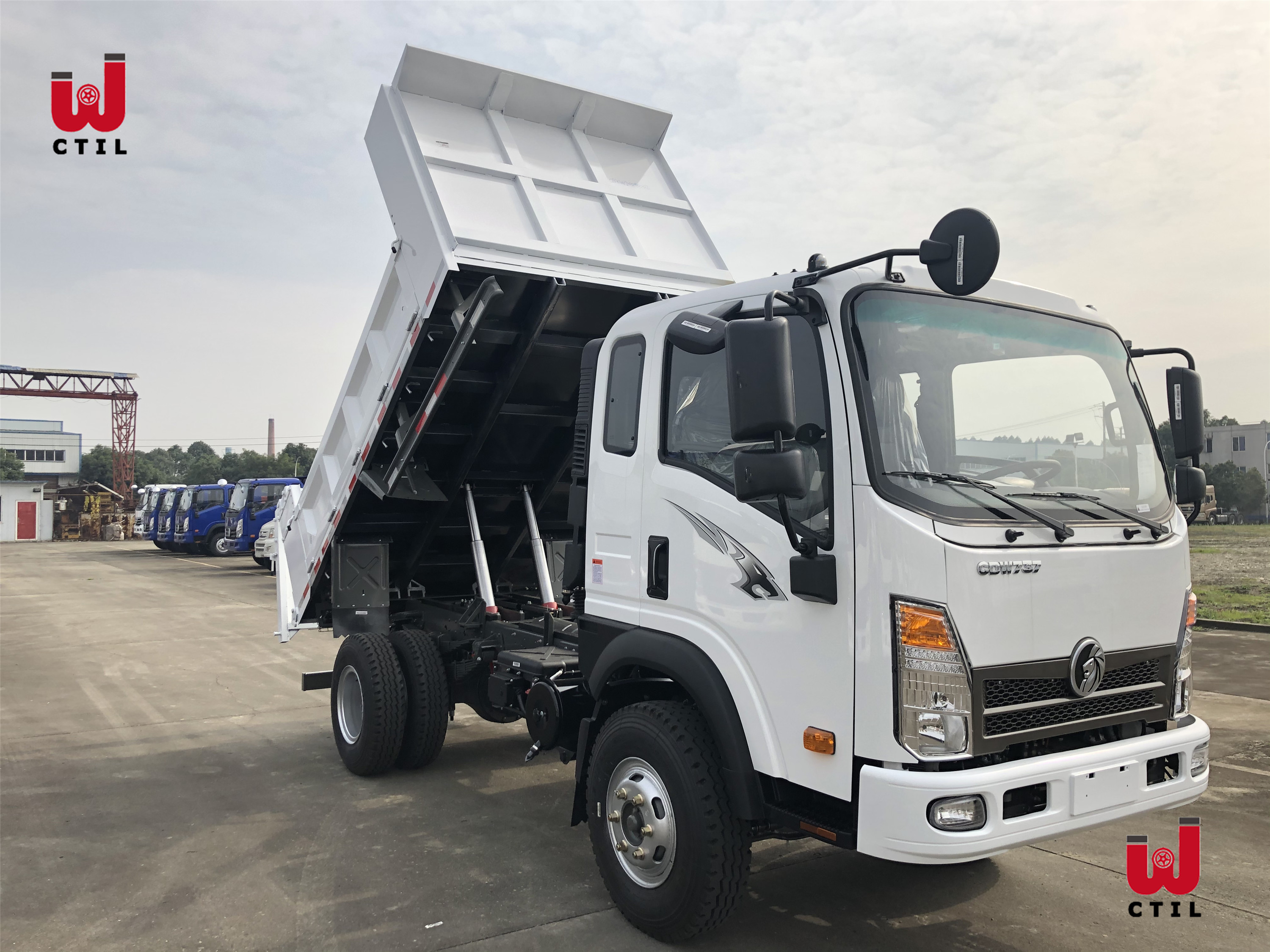

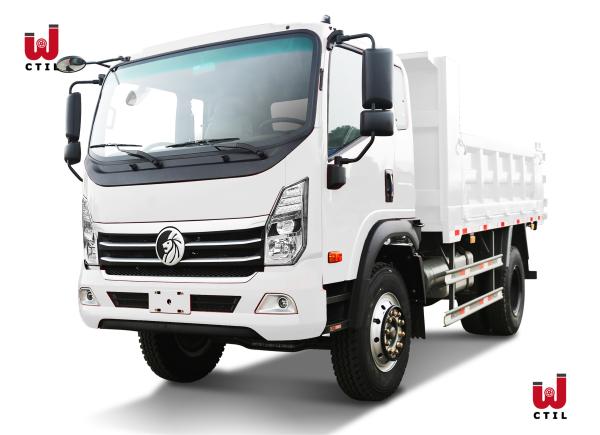

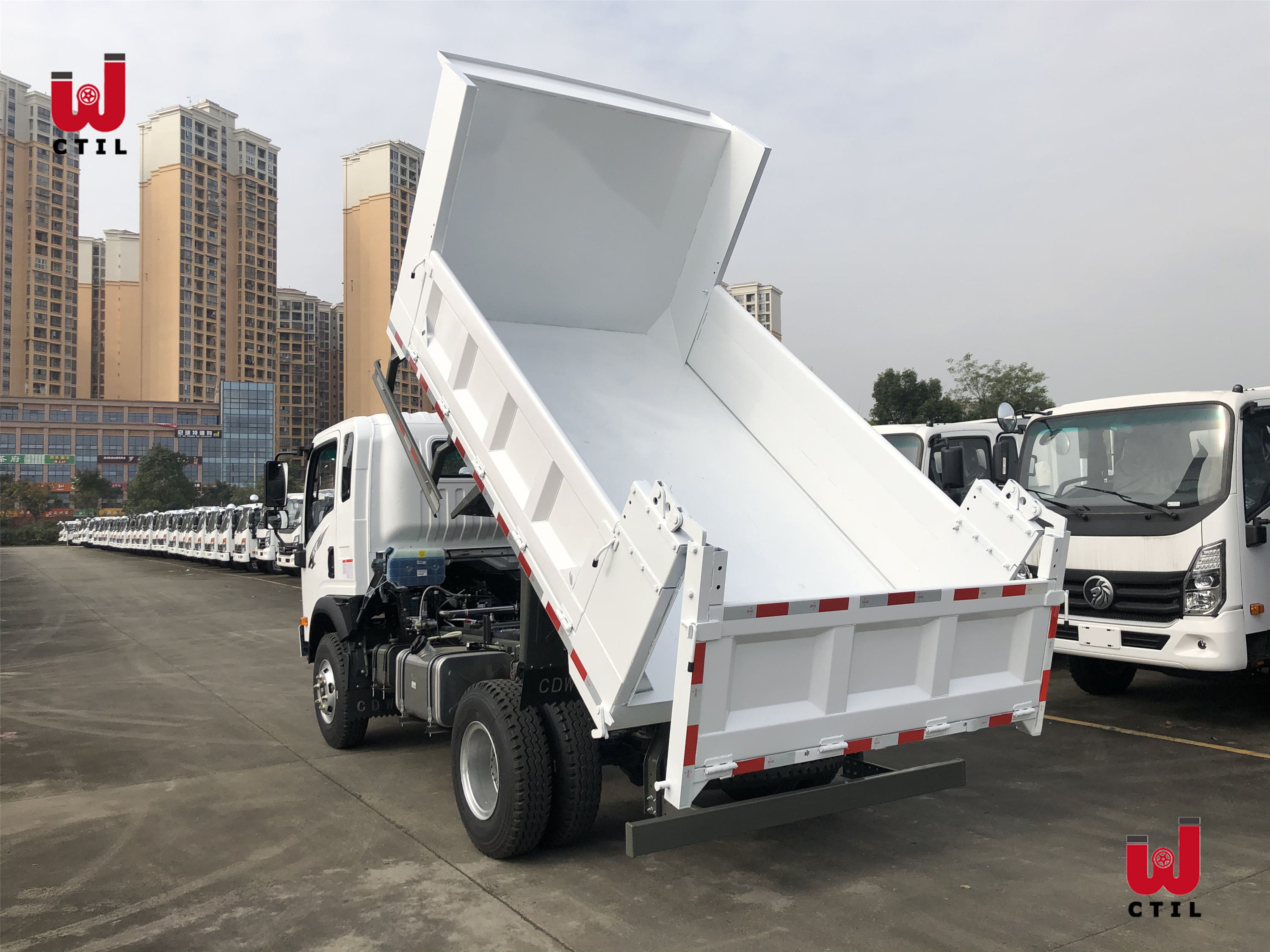

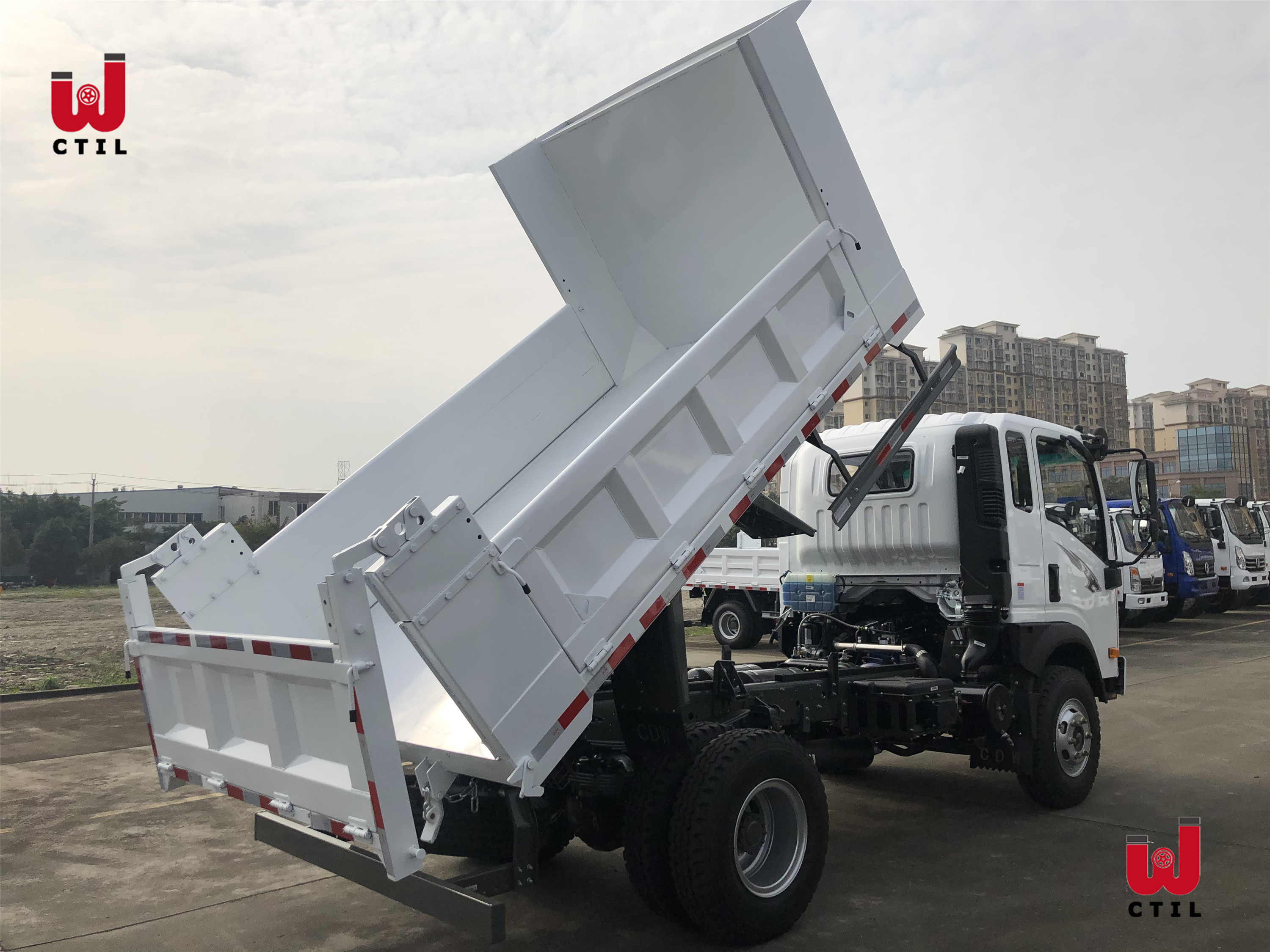

Sinotruk CDW 4X2 5T Dump Truck Tipper Light Duty Dumper
Our main Overseas Business Scope
- All types of brand new and used heavy duty truck and light duty truck
- Special modified vehicle
- All types of semitrailer
- Construction equipment&Machinery
- Pickup, VAN, Bus
- Spare parts- Service&Maintenance
Our main products include full series products of CNHTC(HOWO,STR,Golden Prince,etc.),buses, trailers, including dump truck, tractor truck, concrete mixer truck, sprinkler truck,water/Oil tank truck, truck mounted crane, concrete pump truck.etc, low bed semi-trailer,flatbed semi-trailer, bulk cement semi-trailer, skeleton semi-trailer and spare parts for them.
We have different kind of Trucks,You can choose according to your requirement!
Original Sinotruk Homan 4X4 6T All Wheel drive Tipper Dump Truck
1.Technical specification
| Model | CDW 757B Dump Truck |
| Engine | Make: YN38PE-1, Euro-2 emission, intercooler, turbocharge, 116 Hp
|
| Cab | 2080 mm Extended Cabin,with A/C, Radio FM with USB
Left hand drive cab |
| Transmission | 1045HF, 5 forwards & 1 reverse |
| Steering | Power steering |
| Number of axle | 2 |
| Axle | 145D1A/153N1(i=6.5) |
| Wheel base (mm) | 3600 |
| Tires | 9.00-20×7, rear axle with double tires |
| Chassis Section(mm) | 280x10 |
| Van dimension (mm) | 4140*2200*800mm 7.286M3
|
| Lifting system | Single cylinder with cylinder diameter and lifting height 180×660mm |
| Color | Red, Yellow, Green, White, Blue |

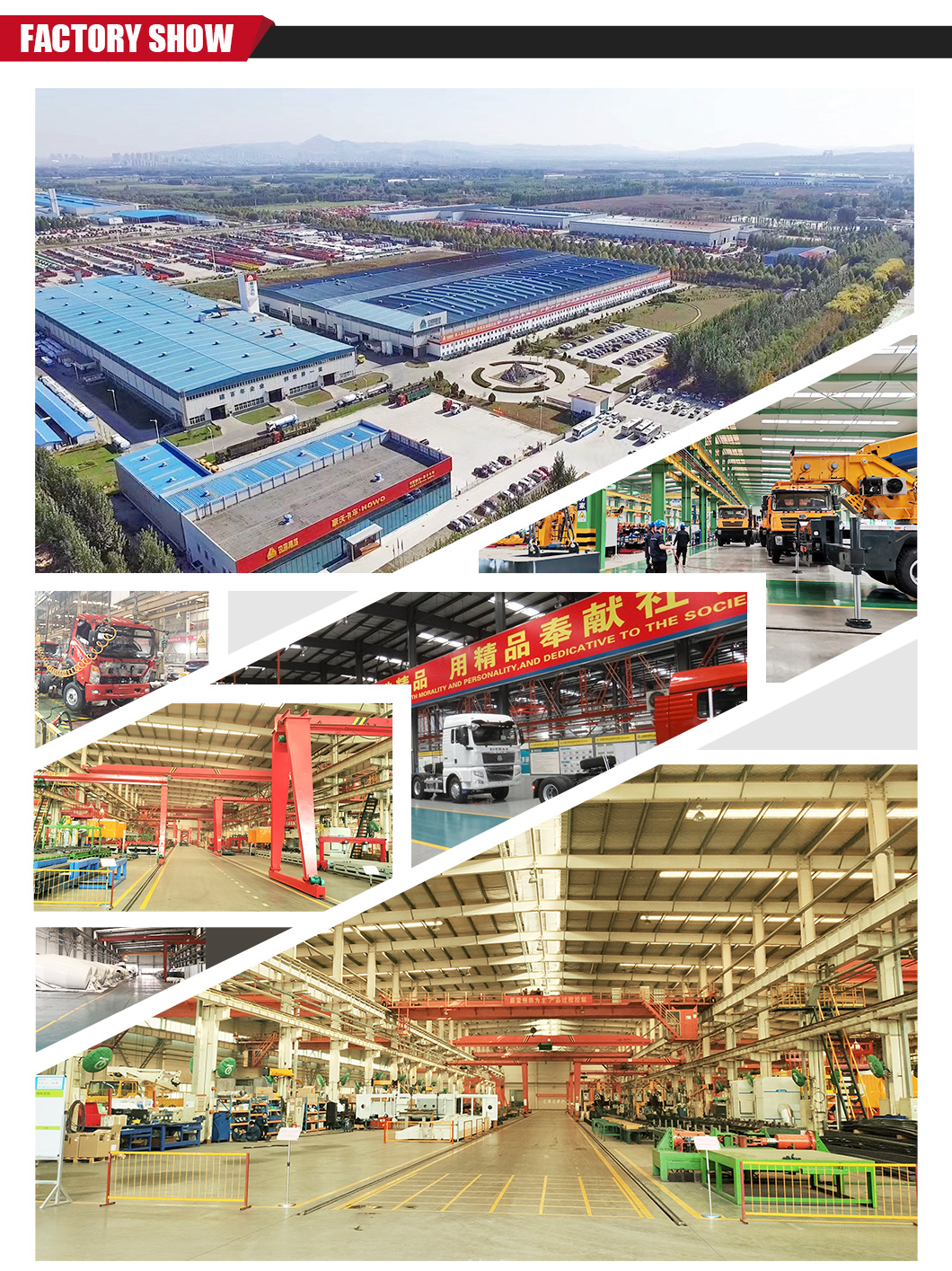

2.Our Factory brief Instruction
SINOTRUK has an annual output of 180,000 vehicles and 200,000 engines capacity.

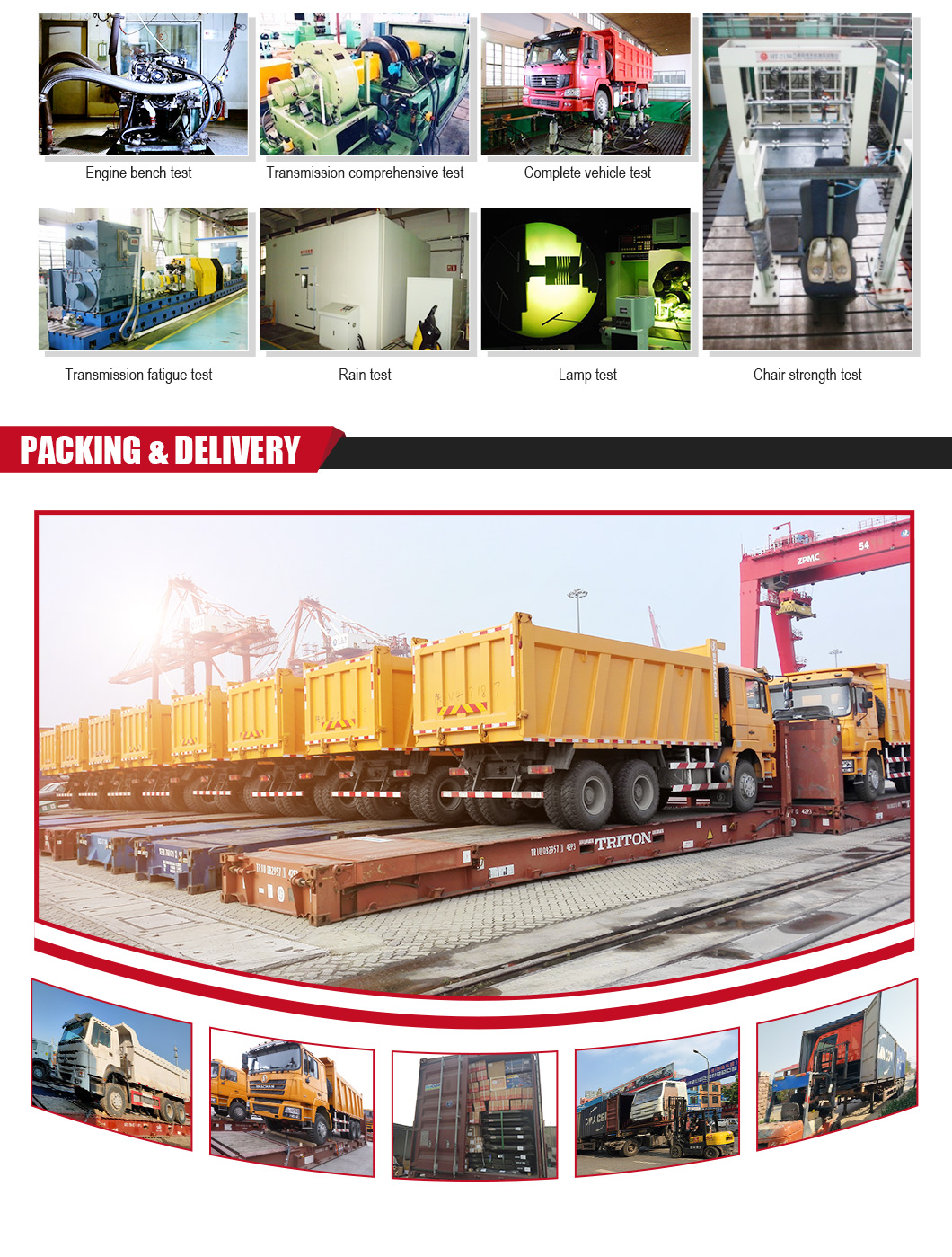

3.Packing: Nude packing after painting wax or according to your requirement.
Shipping:By bulk cargo carrier, RORO, flat rack

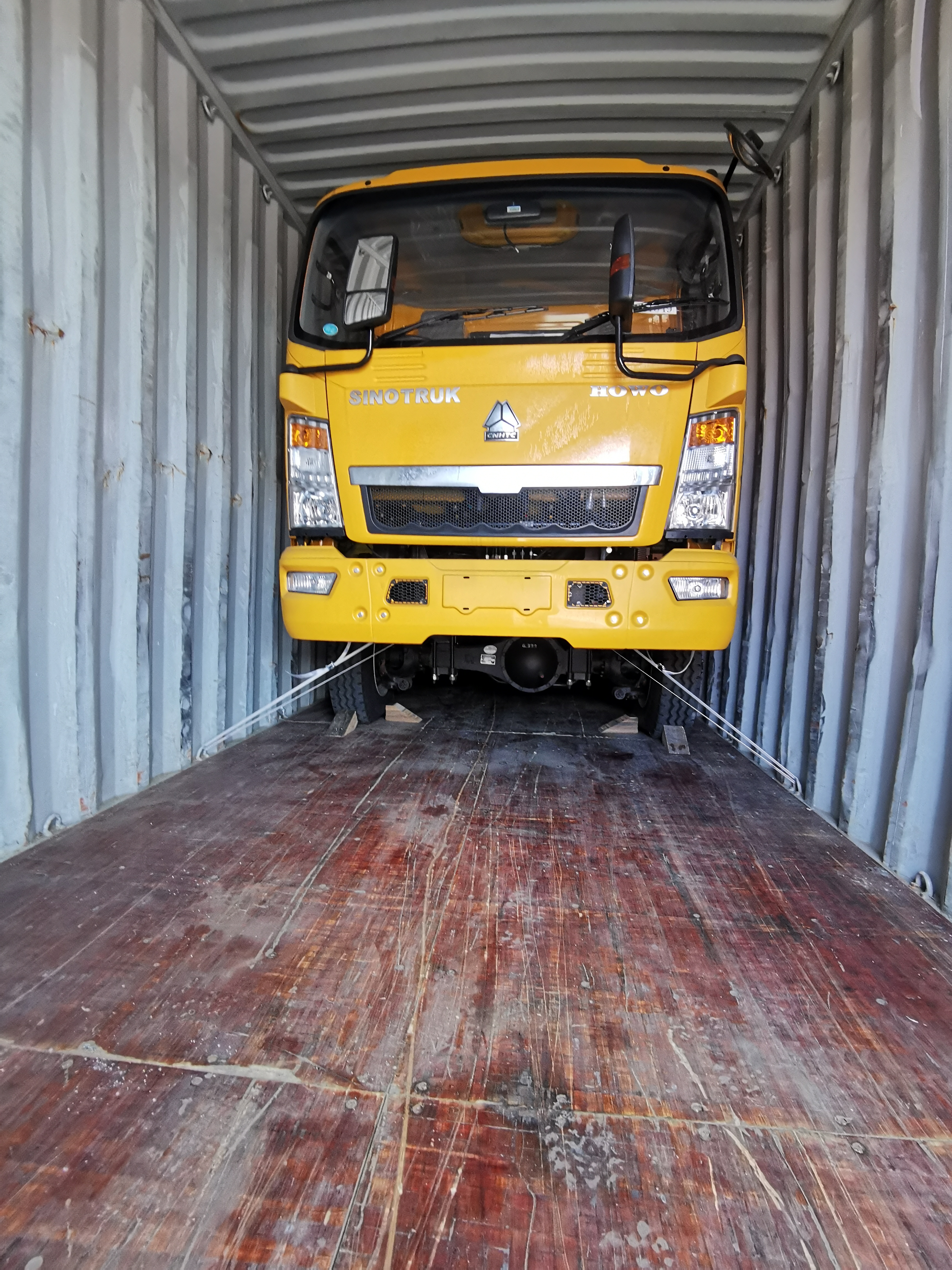

Shipping can bya 40feet container and you can also put some other goods together,can help you save some shipping freight
Product Tags:
|
|
Sinotruk CDW Light Duty Dump Truck Tipper 4X2 5T Images
|
